HP 8510C Network Analyzer Agilent [8510C] 110GHz

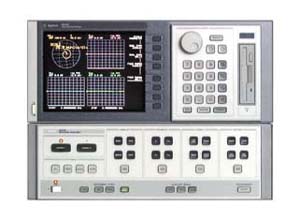

8510C Network Analyzer.JPG

HP 8510C Network Analyzer Agilent 8510C. Premium Used . BRL Test, established 2001, is happy to offer this proven network analyzer. Fully calibrated with CERT. You have the added reassurance of warranty and right of return. We boast a 100% satisfaction rating. For a quote visit our website page 8510C. Call 407-682-4228 for the best full service.

The HP 8510C vector network analyzer continues to provide the best performance to meet your new design and test challenges. With unmatched accuracy and convenience, the 8510C vector network analyzer makes broadband measurements from 45 MHz to 50 GHz in 2.4 mm coax, from 45 MHz to 110 GHz in 1.0 mm coax and from 33 GHz to 110 GHz in waveguide bands. The 8510C network analyzer measures the magnitude, phase, and group delay of two-port networks to characterize their linear behavior. Optionally, the 8510C network analyzer is also capable of displaying a network’s time domain response to an impulse or a step waveform by computing the inverse Fourier transform of the frequency domain response. The 8510C family of systems is modular. Choose the source(s), S-parameter test set(s), and test accessories to meet your measurement applications.
Thru-Reflect-Line precision two-port calibration for coaxial measurements
Line-Reflect-Match calibration for on-wafer and in-fixture applications
45 MHz to 110 GHz frequency range
Real-time error-corrected measurements
60 dB effective directivity and source match
80 to 100 dBm of dynamic range available
0.001 dB, 0.01 degree, 0.01 ns measurement resolution
Data storage on an internal 3.5 disk drive or data output to an HP-IB or serial (RS-232) plotter or printer
Four S-parameter color display
Modular to configure to your needs

Repair of Agilent HP 8510C
BRL Test in House Repair Engineering Group absolutely knows HP 8510C Repair. Call 407-682-4228 for service. BRL Test website BRL Test website
